Slide Switch: SPST, Standard Size

Slide Switch: SPST, Standard Size

  • 119

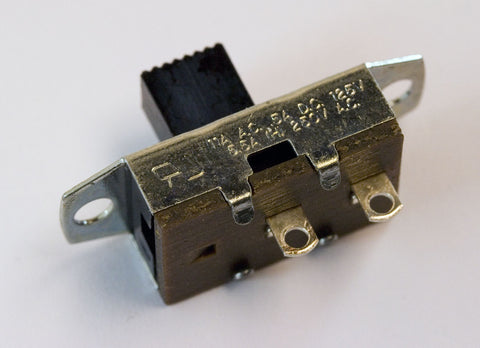

Standard size SPST panel mount slide switch. Eyelet solder lug terminals. Overall maximum dimensions 1.4" x 0.55" x 1" (height). The black plastic slide is 0.22" x 0.3" x 0.35" (h). The contact enclosure is 0.9" x 0.55" x 0.65(h) including the 0.35" long solder tabs. The mounting hole spacing is approximately 1.1" center-to-center. Contacts are rated for 0.5A at 125VDC and 6A at 125VAC.
Brand: Tinkering Supplies
Brand Part Number: GF-1123-0009
Our Part Number: h4806
